Covering (Flattening out overlock seams) *without a top cover thread

Search results

W3500P series

W3562P ： Oil barrier type, flatbed, interlock stitch machines

  • MIDDLE CLASS
  • OIL BARRIER
  • Bottom feed
Subclasses Use Maximum speed Fabric weight Remarks
W3562P-01G ・[Use]Plain seaming （Covering）（Hemming） ・[Maximum speed]6,000 (5,000 with DDM) sti/min ・[Fabric weight] ・[Remarks]

W3600P series

W3600P ： Oil barrier type, cylinder bed, interlock stitch machines

  • MIDDLE CLASS
  • OIL BARRIER
  • Bottom feed
Subclasses Use Maximum speed Fabric weight Remarks
W3664P-01G ・[Use]Plain seaming （Covering）（Hemming） ・[Maximum speed]6,000 (5,000 with DDM) sti/min ・[Fabric weight] ・[Remarks]
W3664P-03F ・[Use]Covering ・[Maximum speed]6,000 (5,000 with DDM) sti/min ・[Fabric weight] ・[Remarks]Flattening out overlock seams

W2600P series

W2600P ： Oil barrier type, cylinder bed, interlock stitch machines

  • HIGH GRADE
  • OIL BARRIER
  • Bottom feed
Subclasses Use Maximum speed Fabric weight Remarks
W2664S-01G ・[Use]Plain seaming （Covering）（Hemming） ・[Maximum speed]7,000 sti/min ・[Fabric weight] ・[Remarks]
W2664P-01G ・[Use]Plain seaming （Covering）（Hemming） ・[Maximum speed]6,500 sti/min ・[Fabric weight] ・[Remarks]Wide type feed dog
W2664P-01J ・[Use]Plain seaming （Covering）（Hemming） ・[Maximum speed]6,500 sti/min ・[Fabric weight] ・[Remarks]Narrow type feed dog
W2664P-03F ・[Use]Covering ・[Maximum speed]6,500 sti/min ・[Fabric weight] ・[Remarks]Flattening out overlock seams

W500P series

W562P ： Oil barrier type, flatbed, interlock stitch machines

  • HIGH GRADE
  • OIL BARRIER
  • Bottom feed
Subclasses Use Maximum speed Fabric weight Remarks
W562P-01G ・[Use]Plain seaming （Covering）（Hemming） ・[Maximum speed]6,000 sti/min ・[Fabric weight] ・[Remarks]
W562P-01M ・[Use]Plain seaming （Covering）（Hemming） ・[Maximum speed]6,000 sti/min ・[Fabric weight] ・[Remarks]For light weight fabrics
W562P-03D ・[Use]Covering ・[Maximum speed]6,000 sti/min ・[Fabric weight] ・[Remarks]

W600P series

W600P ： Oil barrier type, cylinder bed, interlock stitch machines

  • HIGH GRADE
  • OIL BARRIER
  • Bottom feed
Subclasses Use Maximum speed Fabric weight Remarks
W664P-01G ・[Use]Plain seaming （Covering）（Hemming） ・[Maximum speed]5,500 sti/min ・[Fabric weight] ・[Remarks]
W664P-01H ・[Use]Plain seaming （Covering）（Hemming） ・[Maximum speed]5,500 sti/min ・[Fabric weight] ・[Remarks]
W664P-03F ・[Use]Covering ・[Maximum speed]6,000 sti/min ・[Fabric weight] ・[Remarks]Flattening out overlock seams
W664P-03K ・[Use]Covering ・[Maximum speed]6,000 sti/min ・[Fabric weight] ・[Remarks]Folding over overlock ams ,single lap seaming

W500PC series

W500PC ： Oil barrier type, flatbed, interlock stitch machines

  • ECONOMY TYPE
  • OIL BARRIER
  • Bottom feed
Subclasses Use Maximum speed Fabric weight Remarks
W562PC-01G ・[Use]Plain seaming （Covering）（Hemming） ・[Maximum speed]6,000 sti/min ・[Fabric weight] ・[Remarks]

W600PC series

W600PC ： Oil barrier type, cylinder bed, interlock stitch machines

  • ECONOMY TYPE
  • Bottom feed
Subclasses Use Maximum speed Fabric weight Remarks
W662PC-01G ・[Use]Plain seaming （Covering）（Hemming） ・[Maximum speed]5,500 sti/min ・[Fabric weight] ・[Remarks]

WT500P series

WT500P ： Variable top feed, flatbed, interlock stitch machines

  • HIGH GRADE
  • OIL BARRIER
  • Variable top feed
Subclasses Use Maximum speed Fabric weight Remarks
WT562P-01G ・[Use]Plain seaming （Covering）（Hemming） ・[Maximum speed]5,500 sti/min ・[Fabric weight] ・[Remarks]

WT600P series

WT600P ： Variable top feed, cylinder bed, interlock stitch machines

  • HIGH GRADE
  • OIL BARRIER
  • Variable top feed
Subclasses Use Maximum speed Fabric weight Remarks
WT664P-01G ・[Use]Plain seaming （Covering）（Hemming） ・[Maximum speed]5,500 sti/min ・[Fabric weight] ・[Remarks]
WT664P-03F ・[Use]Covering ・[Maximum speed]5,500 sti/min ・[Fabric weight] ・[Remarks]Flattening out overlock seams

W(T)200P series

W200P ： Small cylinder bed , Interlock stitch machine

  • HIGH GRADE
  • OIL BARRIER
  • Variable top feed
Subclasses Use Maximum speed Fabric weight Remarks
W264HP-01G ・[Use]Plain seaming ・[Maximum speed]5,000 sti/min ・[Fabric weight] ・[Remarks]
W264P-03F ・[Use]Covering ・[Maximum speed]5,000 sti/min ・[Fabric weight] ・[Remarks]Flattening out overlock seams

W(T)200P series

WT200P ： Variable top feed, small cylinder bed, interlock stitch machines

  • HIGH GRADE
  • OIL BARRIER
  • Variable top feed
Subclasses Use Maximum speed Fabric weight Remarks
WT264P-03F ・[Use]Covering ・[Maximum speed]5,000 sti/min ・[Fabric weight] ・[Remarks]Flattening out overlock seams

WT169P series

WT169P ： Variable top feed, interlock stitch machines with an extremely small-sized cylinder bed

  • HIGH GRADE
  • OIL BARRIER
  • Variable top feed
Subclasses Use Maximum speed Fabric weight Remarks
WT169P-03F ・[Use]Covering ・[Maximum speed]4,000 sti/min ・[Fabric weight] ・[Remarks]Flattening out overlock seams

FW series

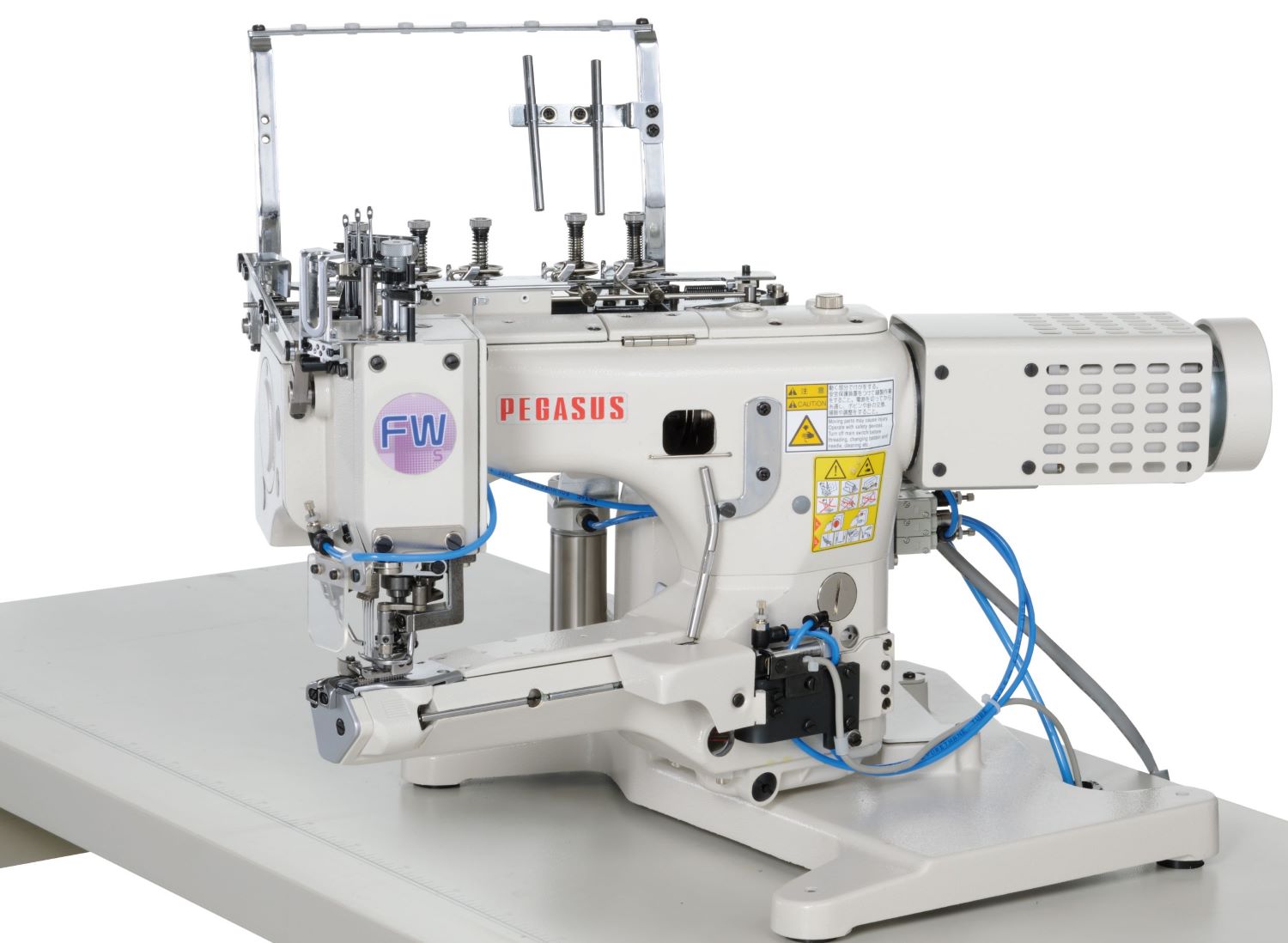

FW600 ： Feed-up-the-arm, cylinder bed, interlock stitch machines

  • HIGH GRADE
  • Bottom feed
Subclasses Use Maximum speed Fabric weight Remarks
FW603FB ・[Use]Covering ・[Maximum speed]4,500 sti/min ・[Fabric weight]Medium ・[Remarks]Flattening out overlock seams
FW603FC ・[Use]Covering ・[Maximum speed]4,500 sti/min ・[Fabric weight]Medium ・[Remarks]Flattening out overlock seams
