Under shirts

Under shirts_A

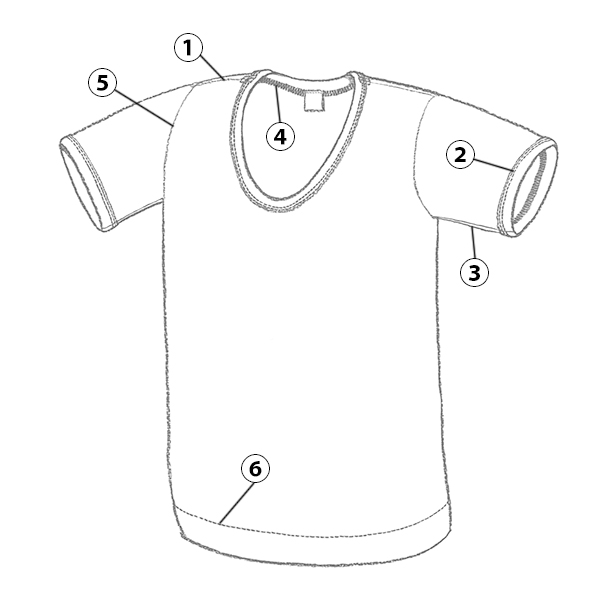

Following numbers of the table correspond to the circled numbers in images.

  • 1 Joining shoulders

    Machine model:EX5214-M53/333-2x4/TK

    2-needle overedger for attaching tape, with tape cutter

    2-needls 4-threads, overedge (plain seaming)

  • 2 Binding sleeve

    Machine model:W562P-02BBx240/TK

    2-needle, flatbed, interlock stitch machine with top cover thread (used as "without top cover thread"on this operation) for binding, with tape cutter

    Binding tape  *without a top cover thread

  • 3 Closing sleeves

    Machine model:EX5204-82/233-4/BT

    1-needle overedger for backlatching, with backlatcher

    1-needls 3-threads, overedge (Backlatching)

  • 4 Binding neck openings

    Machine model:W562P-02BBx240/TK

    2-needle, flatbed, interlock stitch machine with top cover thread (used as "without top cover thread" on this operation) for binding, with tape cutter

    Binding tape  *without a top cover thread

  • 5 Attaching sleeves

    Machine model:EX5214-M03/333-2x4/KS/PL

    2-needle overedger for plain seaming, with thread chain cutter, presser foot lift

    2-needls 4-threads, overedge (plain seaming)

  • 6 Blindstitch hemming bottom

    Machine model:EX5114-92M2/223N-2x3/EH/KS/PL

    Multi-use type cylinder bed, overedger with electric blindstitch hemming guide, thread chain cutter, presser foot lift

    1-needle 3-threads, overedge (Blindstitch hemming)

Under shirts_B

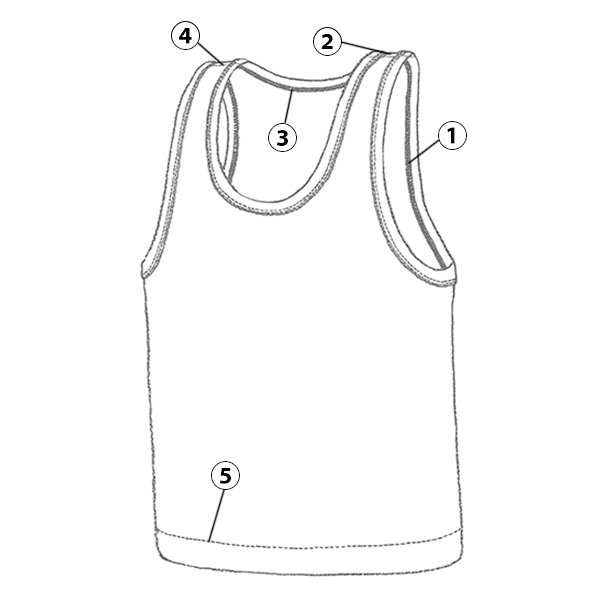

Following numbers of the table correspond to the circled numbers in images.

  • 1 Binding armholes

    Machine model:W562P-02BBx240/TK

    2-needle, flatbed, interlock stitch machinen with top cover thread(used as "without top cover thread"on this operation) for binding, with tape cutter

    Binding tape  *without a top cover thread

  • 2 Joining shoulder

    Machine model:EX5214-M53/333-2x4/TK

    2-needle overedger for attaching tape, with tape cutter

    2-needls 4-threads, overedge (plain seaming)

  • 3 Binding neck

    Machine model:W562P-02BBx240/TK

    2-needle, faltbed, interlock stitch machine with top cover thread (used as "without top cover thread"on this operation) for binding, with tape cutter

    Binding tape  *without a top cover thread

  • 4 Joining shoulder

    Machine model:EX5204-82/233-4/BT

    1-needle overedger for backlatching, with backlatcher

    1-needls 3-threads, overedge (Backlatching)

  • 5 Blindstitch hemming bottom

    Machine model:EX5114-92M2/223N-2x3/EH/KS/PL

    Multi-use type cylinder bed, overedger with electric blindstitch hemming guide, thread chain cutter, presser foot lift

    1-needle 3-threads, overedge (Blindstitch hemming)
